Sectional garage doors are the most common and versatile garage door style in Canada. Designed for smooth vertical operation and compact overhead storage, these doors offer excellent insulation, security, and aesthetic flexibility, making them a top choice for both residential and commercial properties.
In this guide, we’ll break down the structure, materials, benefits, and pricing of sectional garage doors in the Canadian market.
Sectional garage doors are composed of horizontal panels (sections) that are hinged together. When the door opens, the panels roll vertically along tracks and curve to rest parallel to the garage ceiling. This design allows for efficient space usage and high sealing performance.
They are typically made of steel, aluminum, or composite materials, and are available in insulated and non-insulated models.

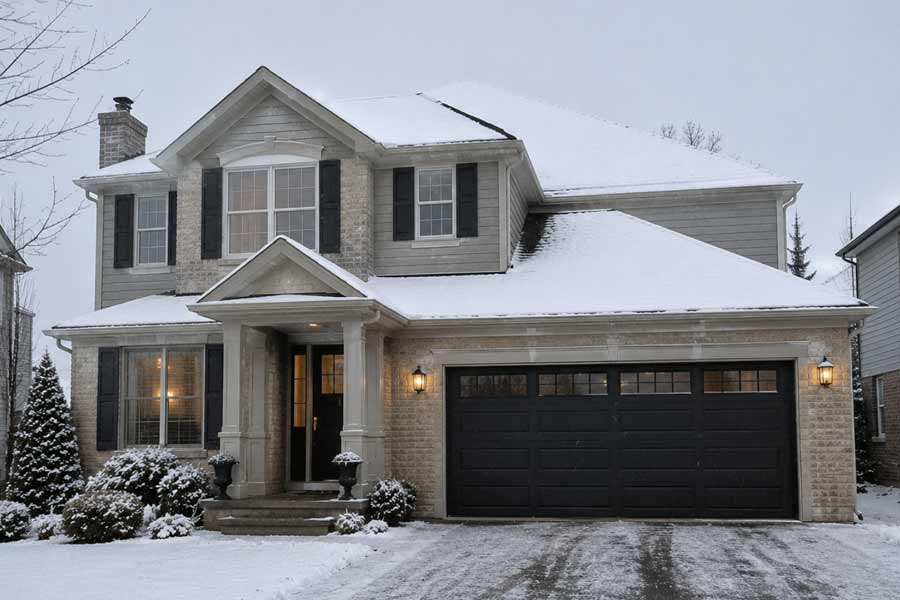

In Canada’s extreme climate, insulated sectional doors help maintain interior temperatures and protect against cold drafts. Key performance features include:
| Material | Characteristics |
|---|---|
| Steel | Most popular, durable, and customizable. |
| Aluminum | Lightweight and rust-resistant; often used in modern designs with full-view glass. |
| Wood-Look Composite | Offers a natural aesthetic with less maintenance. |
| Installation Type | Description |
|---|---|
| Standard Headroom | Most common, requires typical clearance above opening. |
| Low Headroom | For garages with limited ceiling space. |
| High Lift or Vertical Lift | Often used in commercial applications or for taller ceilings. |
Pricing for sectional garage doors depends on size, insulation, design, and opener type:
| Door Type | Price Range (CAD) |
|---|---|
| Non-Insulated Single Door | $800 – $1,200 |
| Insulated Steel Door (R-12 to R-18) | $1,200 – $2,500 |
| Full-View Aluminum Door | $2,500 – $5,000+ |
| Installation Labour | $300 – $600 |
| Garage Door Opener (optional) | $300 – $800 |
Custom finishes, smart technology, and window inserts will increase costs.
A typical sectional garage door installation includes:
The technician measures the opening width, height, and headroom to recommend compatible door and track types.
You choose panel style, colour, insulation level, windows, and opener system.
Old doors and tracks are safely disassembled and disposed of. (* if applicable)
Vertical and horizontal tracks are mounted, then door panels are assembled and secured with hinges and rollers.
Torsion springs are carefully adjusted for balanced lifting. The opener and sensors are installed and tested.
Perimeter seals are installed. The system is tested for safety, balance, and smooth operation.
Browse brochures from leading Canadian manufacturers to compare styles, insulation levels, and finishes.
